Meccano Parts for Sale

If you would like to buy any of these Meccano parts contact Ian Wilson:

02838 318753 (UK)
ian@wilson8008.fsnet.co.uk

We Accept cheque paypal or bank transfer etc. If you wish to pay by paypal we can send you an invoice also we have learned recently that we can use DHL to send large parcels from 2KG to 10KG abbroad by DHL at very keen rates.
Painted Mid-Green
Painted Mid-GreenThe C M C press shop are now producing angle girders in excellent quality. We have sourced the correct raw steel for these girders [ size and correct VPN ] we tool from well engineered press tools and fold on a promecam RG 25 -35 press brake. The painted girders are first etch primed then followed be a 2k paint system [wet on wet]. They are available in zink ,medium green and 78 B,R dark blue. We can for a special order 1930s gold [very expensive base coat]. We can also on request supply unfinished girders [no paint ], just debarred for those who might like to paint your own. In any colour feel free to mail with your specifications. There will also be a discount in large orders mail.
NUmber of Holes Price - Zinc Price - Painted (Mid-Green, 78 Blue) Unfinished
49 Holes £5.10 £5.40 P.O.A
37 Holes £4.75 £4.95 P.O.A
31 Holes £3.80 £3.90 P.O.A
25 Holes £1.90 £2.35 P.O.A
19 Holes £1.70 £1.95 P.O.A
15 Holes £1.60 £1.75 P.O.A
13 Holes £1.55 £1.55 P.O.A
11 Holes £1.35 £1.35 P.O.A
9 Holes £1.25 £1.25 P.O.A
7 Holes £1.15 £1.15 P.O.A
6 Holes £1.05 £1.10 P.O.A
5 Holes £1.00 £1.00 P.O.A
4 Holes £0.75 £0.75 P.O.A
3 Holes £0.65 £0.65 P.O.A
2 Holes £0.65 £0.65 P.O.A
      P.O.A

Flat Girders (Holes)
Flat GirdersThe C M C also bring you flat girders tooled from the same tooling as angle only flat. The flat girders are tooled from the same VPN raw steel as angle girders. This is a slightly lower VPN as originals [flat ]. We feel to keep costs down to you we have purchased 1 metric tonne raw material specially made for the job. Make no mistake this raw material is not CR4. Its CS4 the aim of the press shop is to bring you a finished item as close as possible to a standard we would except ourselves. All flat girders are available same spec as in colours that are close to originals.
Number of Holes Price - Zinc Price - Painted (Mid-Green, 78 Blue) Unfinished
49 Holes £4.80 £5.40 P.O.A
37 Holes £4.65 £4.95 P.O.A
31 Holes £3.65 £3.90 P.O.A
25 Holes £1.80 £2.10 P.O.A
19 Holes £1.40 £1.60 P.O.A
15 Holes £1.35 £1.65 P.O.A
13 Holes £1.25 £1.50 P.O.A
11 Holes £1.35 £1.40 P.O.A
9 Holes £1.10 £1.15 P.O.A
7 Holes £0.95 £0.95 P.O.A
6 Holes £0.85 £0.85 P.O.A
5 Holes £0.65 £0.75 P.O.A
4 Holes £0.60 £0.70 P.O.A
3 Holes £0.50 £0.60 P.O.A
2 Holes £0.65 £0.65 P.O.A
      P.O.A

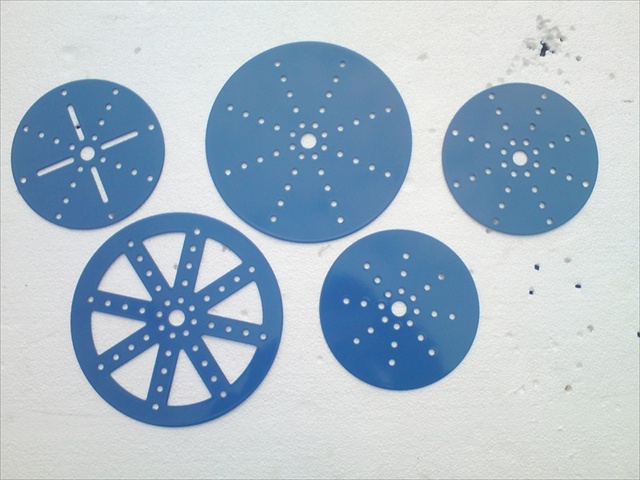

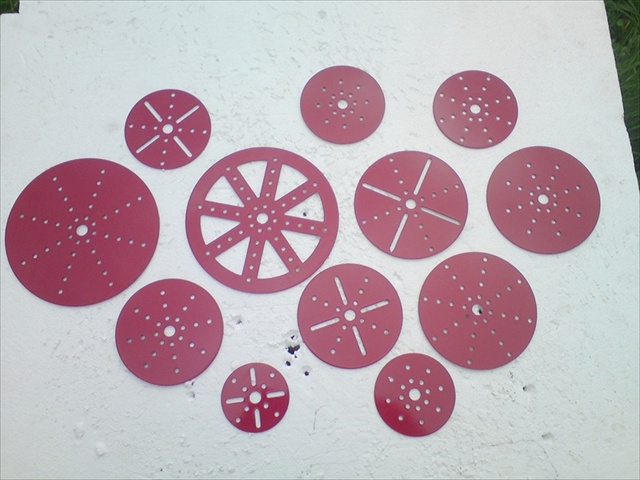

The CMC are also now reproducing 167b's and other circular plates 146 in Both 70's blue and 50's red email or ring for more details. Full update coming shortly.

CMC punched 167bs in 70's blue and 50's Red only 15.00 CMC circular plates in 50's red 2.50-9.00 CMC circular plates in 70s Blue 2.50-9.00

The CMC are now offering GRB Kits two plates and one 167b in mid green and red . blue silver at 145.00 plus p&p and red gold at 160.00 plus p&p


143A 31/2" Circular Girder coming soon
Special Girders
Special GirdersThe C M C press shop realise that some model builders from time to time would need special angled girders or a special length of girder angle or flat. We are in the position to offer custom made girders and with a short lead time are happy to take orders in special requirements
Just ring or mail your needs.

Train Wheels
The CMC from time to time do make a special 146 6inch circular flat for making large train wheels. Instead of using standard 146s, our special 146 adds a little more finnise and charicture to train wheels, giving your model a little more detail. These plates have a similar cutout to the hubdisk and are to work along with 118s or 143s.
The CMC Special 146 is only 9 in a colour of your choice. Just contact us for more details
The CMC have also developed tooling to make a flanges for turning spocked wheels into train wheels. Tthe flange is a snug fit to most wheels and will need a little gluing or locktighting to secure to the spoked wheel. No need for screws or any other fixing that will ruin your wheel.
There are zink coated (out of stock)Black painted or Silver painted (in stock) and only 3.75 each flange. Just contact us.

Click image to see larger picture.

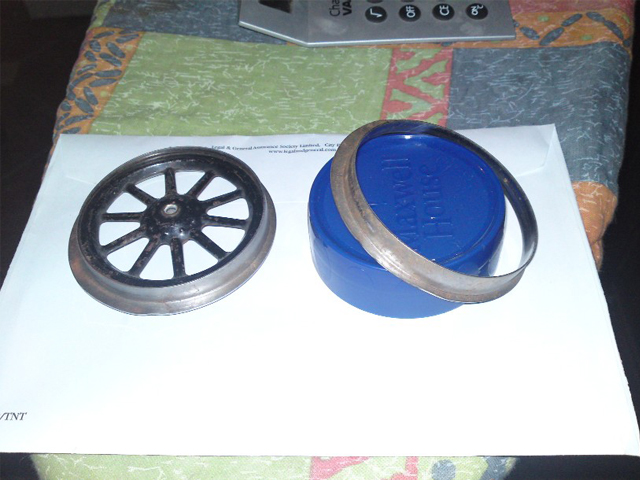

Special Flanges for Spoked Wheels
Cut Out 146

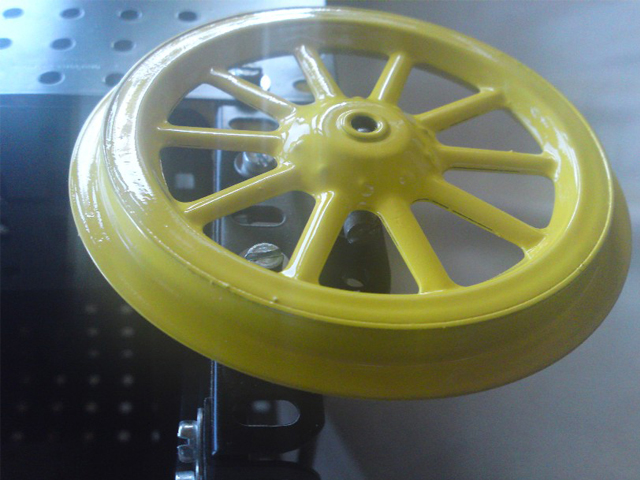

Painted Flanges
Special Flanges for Spoked Wheels Cut Out 146 Painted Flanges

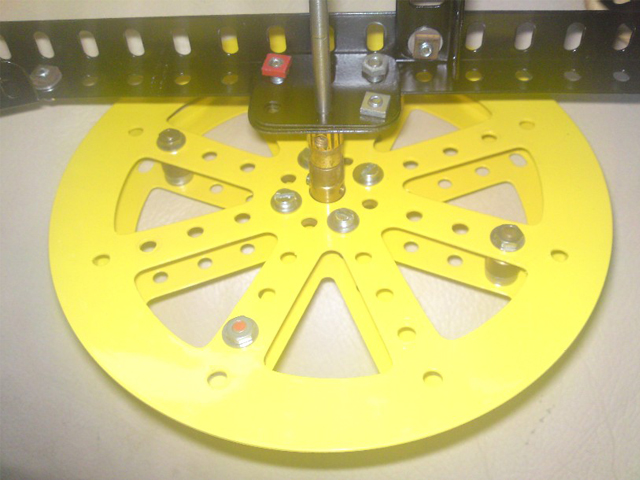

Painted Special 146
Painted Special 146

Stainless Steel Washers
Stainless Steel WashersThe C M C also can supply stainless steel washers by the bag. 1000 washers; these are 4mm and a nice fit and a real tidy alternative at an affordable price. The club has been using them for 2 years now.
Price per bag: £21

CMC Flexible Track For Tanks and Diggers (Cat track).
The C M C press shop have been developing their own flexible track [cat track ] for the building of any digger, tank or even any tracked model you wish to have a go at building. We can supply all the relevant parts to make for a no fuss system that is plug n play. The system is all our own design featuring stainless steel links and Stainless Steel drive wheels and matching idlersin 3 sizes and a profiled top plate. We are trying to give you a cat-track that is as close to the real thing but made in such a way that it will match in with Meccano to compliment the Meccano system. All cat track parts are either precision laser cut or pressed from press tools and are that finished tooled in specially made press tools to a very high standard. The drive and idlers are supplied boss less. This is for 2 main reasons; 1 so solid bush wheels can be used and 2 you can choose the size of the axle you would prefer to use.

Click image to see larger picture.
Laser cutting C M C cat links

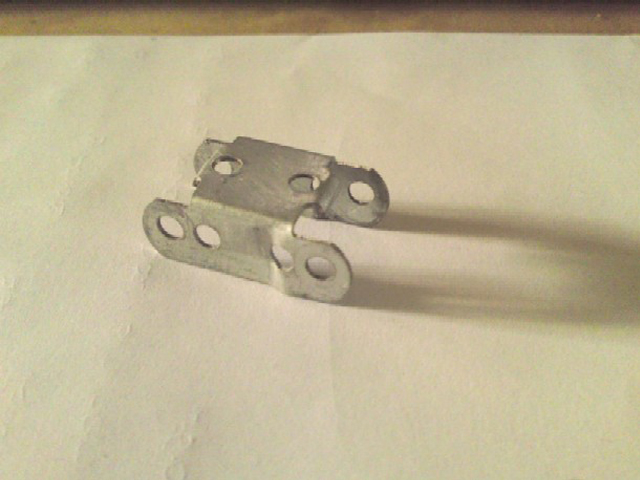

Formed SS link with wings for nuts

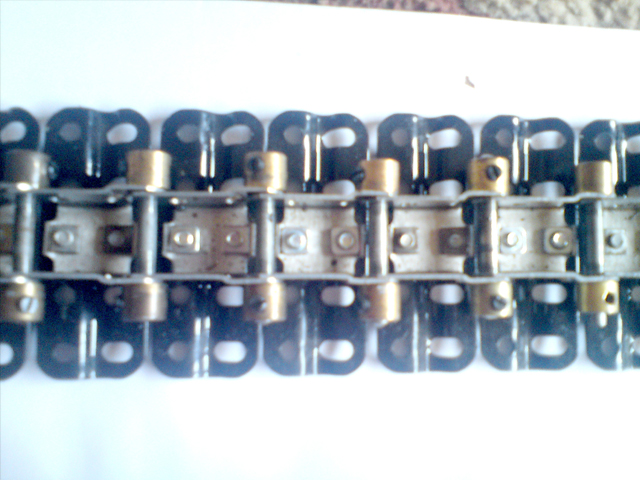

Underside of cat track
Laser cutting C M C cat links Formed SS link with wings for nuts Underside of cat track


Part Number 1 Unit Price 100 Unit Price
Drive wheel
CMC1 AD / CMC1 AI 2,5" 5.50 Per wheel
CMC1 BD / CMC1 BD 2.5" 5.50 Per wheel
CMC2 AB / CMC2 AI 3.5" 6.50 Per wheel
CMC2 BD / CMC2 BD 3.5. 6.50 Per wheel
CMC3 AD / CMC3 AD 5.5" 10.00 Per wheel
CMC3 BD / CMC3 BD 5.5" 10.00 Per wheel
CMC4 Link 1.60 £1.50
CMC5 (5 hole) Top Plate, Zinc/Black 0.65 0.60
Any hole Num available Request

All drives and idlers are cut in 2mm stainless and links are 0.9mm stainles steel.

AD = AXLE DRIVE ONLY drive
BD = BOSS AND AXLE drive

We have two types of drives. This is because different models may require different style drives.

Click image to see larger picture.

2.5 inch CMC1AD and CMC1AI

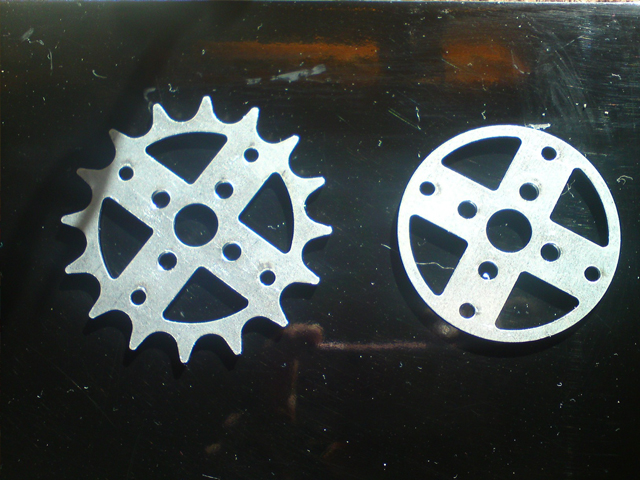

2.5 inch CMC1bd and CMC1bi

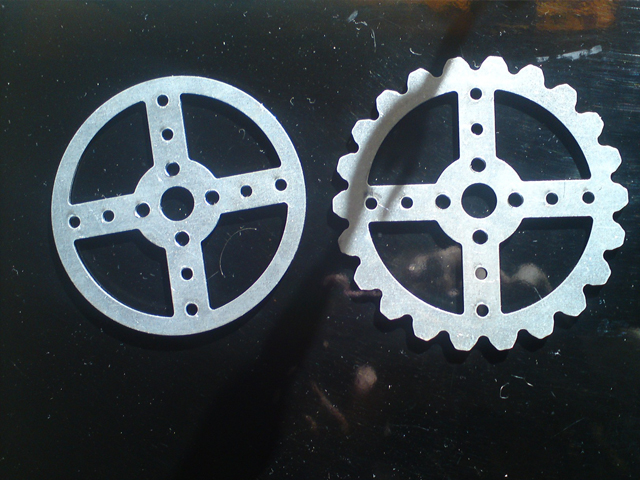

3.5 inch CMC2AD and CMC2ADi
2.5 inch CMC1AD and CMC1AI
2.5 inch CMC1bd and CMC1bi
3.5 inch CMC2AD and CMC2ADi

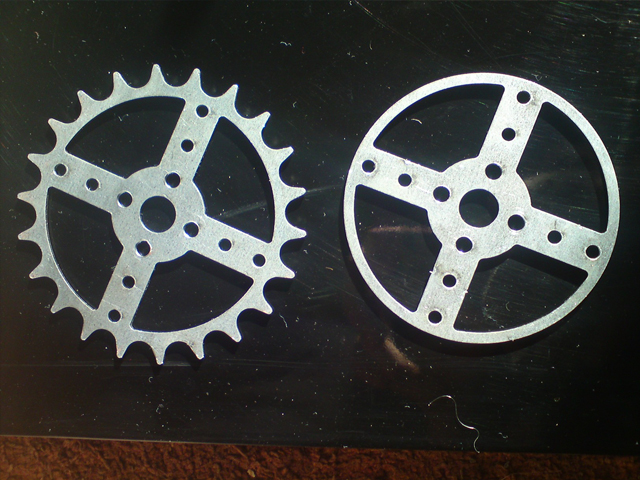

3.5 inch CMC2BD and CMC2BI

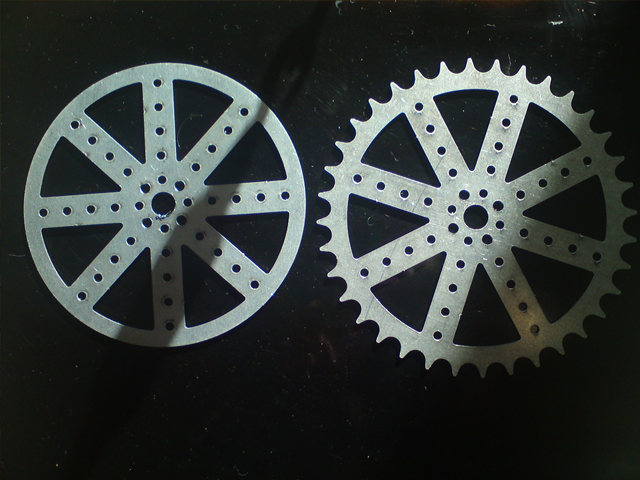

5.5 ince CMC3BD and CMC3BI

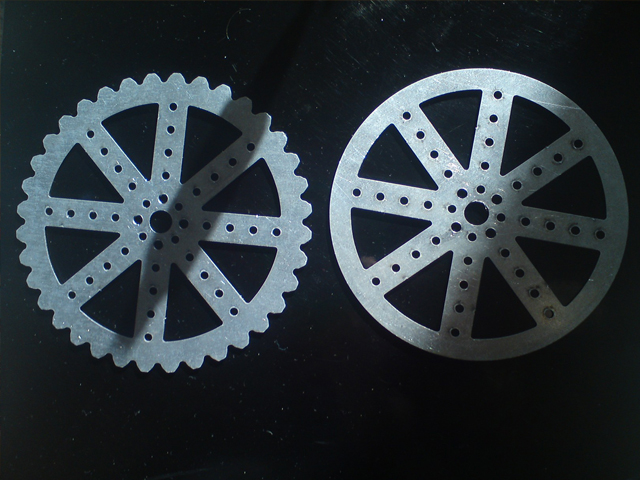

5.5 inch CMC3AD and CMC3AI
3.5 inch CMC2BD and CMC2BI
5.5 inch CMC3BD and CMC3BI
5.5 inch CMC3AD and CMC3AI

CMC cat track in action
